FLT-PLUS CTRL-2.5
FLT-PLUS CTRL-2.5
FLT-PLUS CTRL-2.5
FLT-PLUS CTRL-2.5
Availability:In stock
AIC Part No
PC170083
Mfr Part No
2818944
Mfr
PHOENIX CONTACT
Short Description
FLT-PLUS CTRL-2.5
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.51

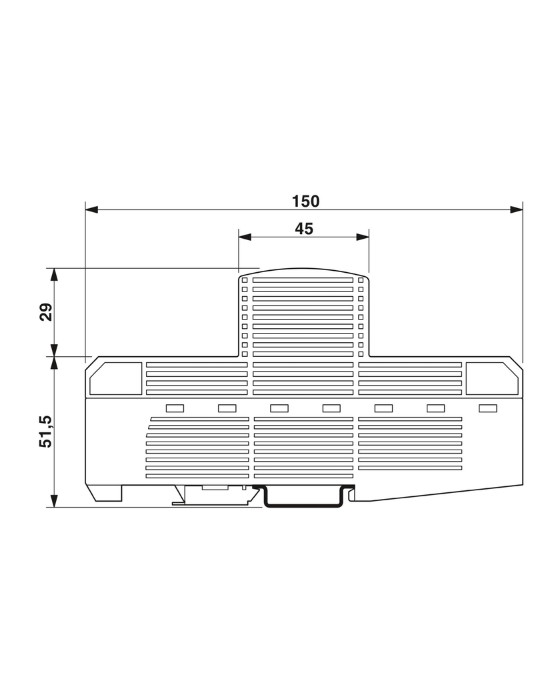

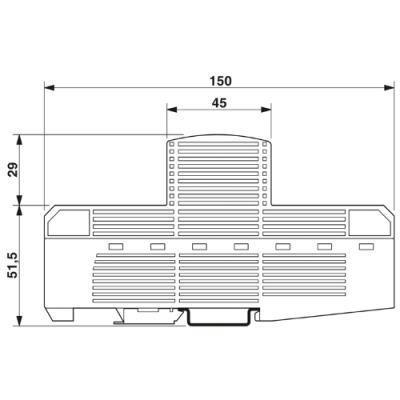

Length
80.5 mm
Height
149.8 mm
Product Attribute
Attribute Value
Material :
PBT/PA-F
Subcategory :
Type 1+2 combined lightning current and surge arrester
No of Positions :
1
Connection Method :
Screw connection
Connector Material :
PBT/PA-F
Flammability Rating :
UL 94 V-0
Mounting Style :
DIN rail: 35 mm
Voltage Rating :
400 V AC
Pitch :
2 Div.
IP Rating :
IP20
Ambient Temp :
-40 °C ... 85 °C
Colour :
black (RAL 9005)
Width :
35.5 mm
