FLT-SEC-P-T1-1C-440/35-FM
FLT-SEC-P-T1-1C-440/35-FM
FLT-SEC-P-T1-1C-440/35-FM
FLT-SEC-P-T1-1C-440/35-FM
Availability:In stock
AIC Part No
PC170088
Mfr Part No
2905987
Mfr
PHOENIX CONTACT
Short Description
FLT-SEC-P-T1-1C-440/35-FM
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.40

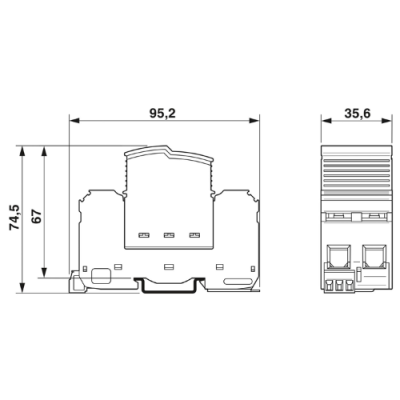

Length
74.5 mm
Height
95.2 mm
Product Attribute
Attribute Value
Material :
PA 6.6-FR 20 % GF
Subcategory :
Type 1+2 combined lightning current and surge arrester
No of Positions :
1
Current Rating :
125 A; L-N / L-PEN
Connection Method :
Screw connection
Connector Material :
PA6.6-FR 20% GF/ PBT-FR
Flammability Rating :
UL 94 V-0
Mounting Style :
DIN rail: 35 mm
Voltage Rating :
400 V AC
Pitch :
2 Div.
IP Rating :
IP20
Ambient Temp :
-40 °C ... 80 °C
Colour :
light gray (RAL 7035)
Width :
35.6 mm
