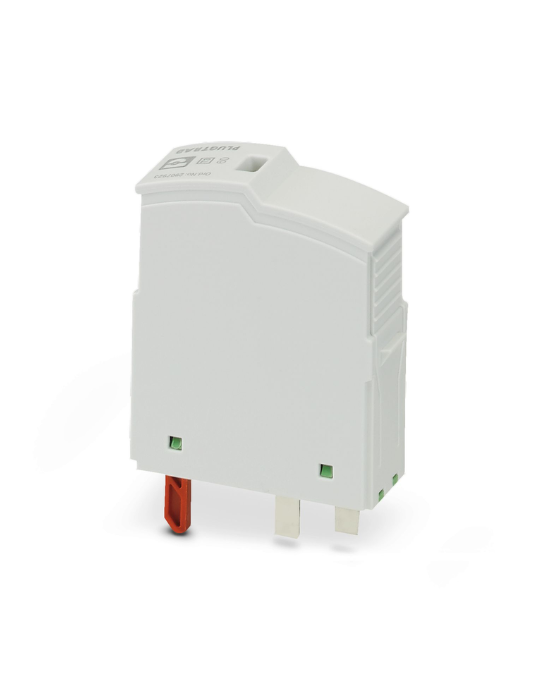

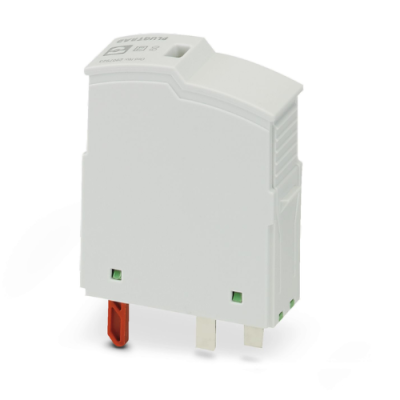

PLT-SEC-T3-230-P-UT/PT, SURGE PROTECTION PLUG
Availability:In stock
AIC Part No
PC170090
Mfr Part No
2907923
Mfr
PHOENIX CONTACT
Short Description
PLT-SEC-T3-230-P-UT/PT, SURGE PROTECTION PLUG
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.03

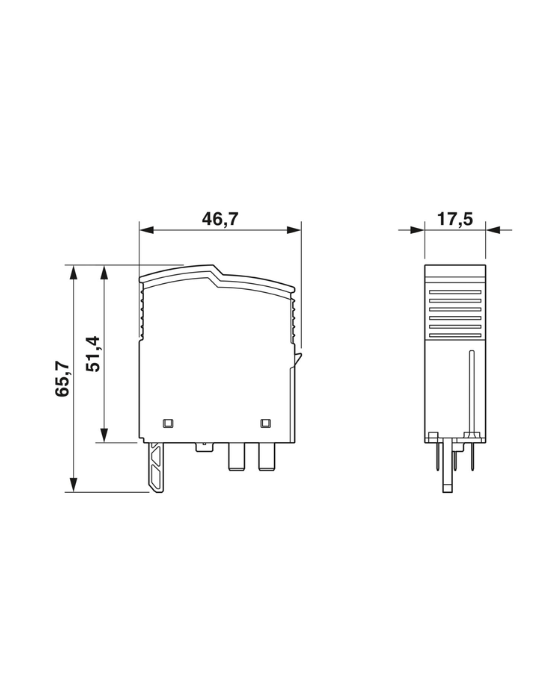

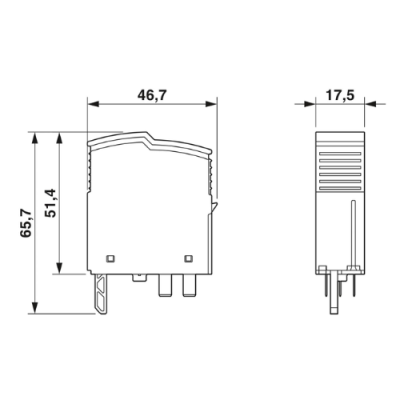

Length
65.7 mm
Height
46.7 mm
Product Attribute
Attribute Value
Material :
PA 6.6-FR 20 % GF
Subcategory :
Type 3 surge protection plug
No of Positions :
2
Connection Method :
pluggable
Connector Material :
PA6.6-FR 20% GF/ PBT-FR
Flammability Rating :
UL 94 V-0
Mounting Style :
on base element
Voltage Rating :
240 V AC
Pitch :
1 Div.
IP Rating :
IP20
Ambient Temp :
-40 °C ... 80 °C
Colour :
light gray (RAL 7035)
Width :
17.5 mm
