PLT-SEC-T3-24-FM-UT
-
Stock:4 Can Dispatch Immediately
-
Factory Lead Time:4-6 Weeks
Price
Price for:
EachPLT-SEC-T3-24-FM-UT
PLT-SEC-T3-24-FM-UT

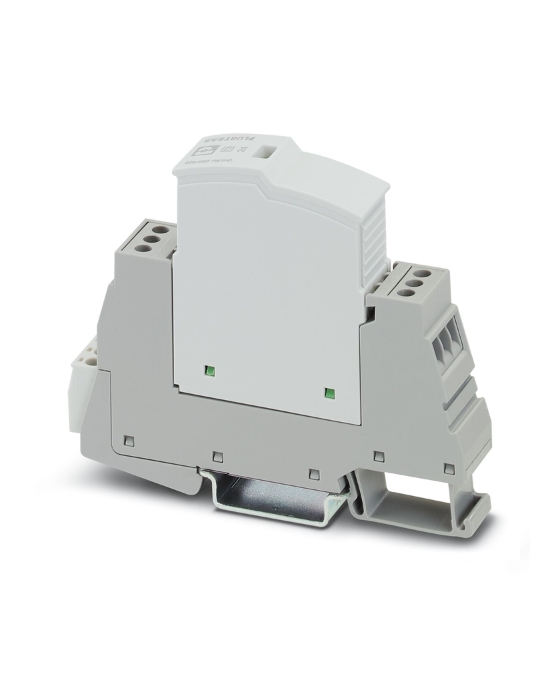

PLT-SEC-T3-24-FM-UT, SURGE PROTECTION, PLUG & BASE ELEMENT
Availability:In stock
AIC Part No
PC170079
Mfr Part No
2907916
Mfr
PHOENIX CONTACT
Short Description
PLT-SEC-T3-24-FM-UT, SURGE PROTECTION, PLUG & BASE ELEMENT
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.08
Length
74.5 mm
Height
93.4 mm
Product Attribute
Attribute Value
Material :
PA 6.6-FR 20 % GF
Subcategory :
Type 3 surge protection device
No of Positions :
2
Current Rating :
26 A; 1L-N & N-PE
Connection Method :
Screw connection
Connector Material :
PA6.6-FR 20% GF/ PBT-FR
Flammability Rating :
UL 94 V-0
Mounting Style :
DIN rail: 35 mm
Voltage Rating :
24 V AC
Pitch :
1 Div.
IP Rating :
IP20
Ambient Temp :
-40 °C ... 80 °C
Colour :
light gray (RAL 7035)
Width :
17.7 mm
