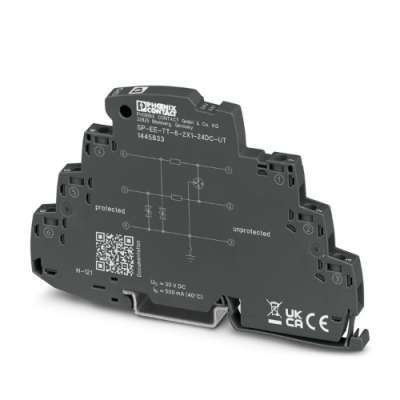

SP-EE-TT-6-2X1-24DC-UT, SURGE PROTECTION DEVICE
Availability:In stock
AIC Part No
PC170089
Mfr Part No
1445833
Mfr
PHOENIX CONTACT
Short Description
SP-EE-TT-6-2X1-24DC-UT, SURGE PROTECTION DEVICE
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.04

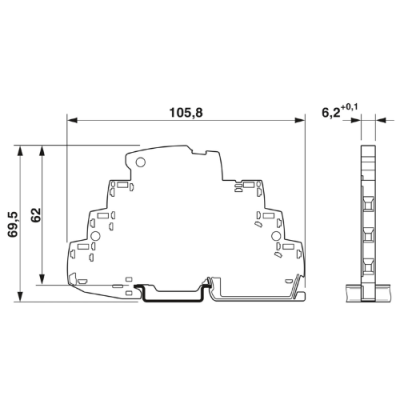

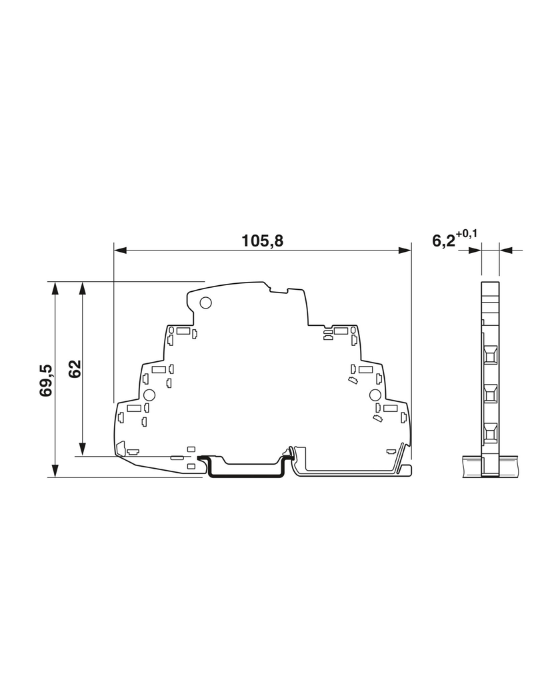

Length
69.5 mm
Height
105.8 mm
Product Attribute
Attribute Value
Material :
PBT
Subcategory :
Surge protection device
Connection Method :
Screw connection
Connector Material :
PBT
Flammability Rating :
UL 94 V-0
Mounting Style :
DIN rail: TH 35 - 7.5 mm
Voltage Rating :
24 V DC
IP Rating :
IP20
Ambient Temp :
-40°C ... 85°C
Colour :
traffic gray B (RAL 7043)
Width :
6.2 mm
