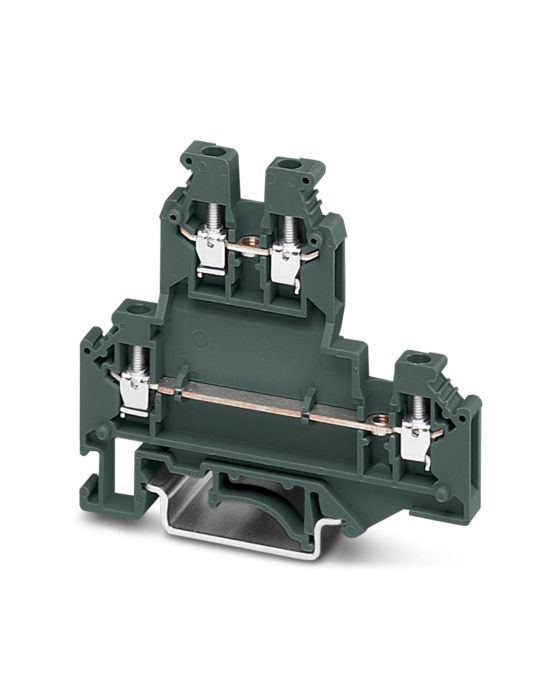

TB 2.5-2L EI DOUBLE LEVEL TERMINAL Dark Grey
TB 2.5-2L EI DOUBLE LEVEL TERMINAL Dark Grey
TB 2.5-2L EI DOUBLE LEVEL TERMINAL Dark Grey
TB 2.5-2L EI DOUBLE LEVEL TERMINAL Dark Grey
Availability:In stock
AIC Part No
PC110177
Mfr Part No
3214217
Mfr
PHOENIX CONTACT
Short Description
TB 2.5-2L EI DOUBLE LEVEL TERMINAL Dark Grey
Products Categories
Terminal Blocks
HSN Code
8536.90.10
Weight
0.01
Length
6.7 cm
Height
6.2 cm
Approvals
Product Attribute
Attribute Value
Material :
Polyamide (PA)
No of Positions :
2
Cross section :
4 mm²
Connection Method :
Screw connection
Flammability Rating :
UL 94 V2
Operating Temperatures :
-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Rated Current (A) :
24
Mounting Style :
DIN Rail (NS 32, NS 35/7.5, NS 35/15)
Operational Voltage :
500 V
Voltage Rating :
6 kV
Conductor cross section :
0.5 mm² ... 4 mm²
No of Connections :
4
Colour :
Dark Grey
Width :
0.52 cm
Type :
Multi-level terminal block
Series :
TB
