VAL-CP-350-ST
VAL-CP-350-ST
VAL-CP-350-ST

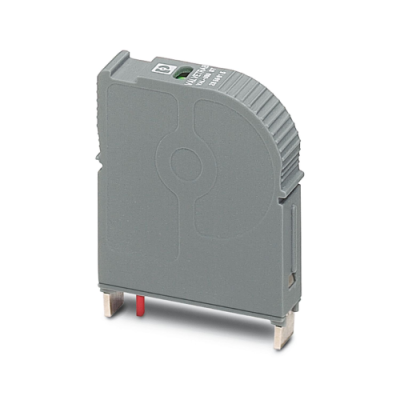

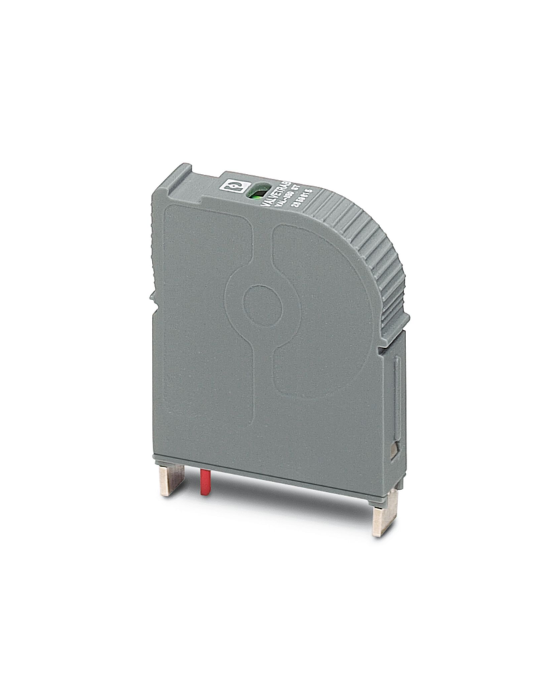

VAL-CP-350-ST, TYPE 2 SURGE PROTECTION PLUG
Availability:In stock
AIC Part No
PC170084
Mfr Part No
2859602
Mfr
PHOENIX CONTACT
Short Description
VAL-CP-350-ST, TYPE 2 SURGE PROTECTION PLUG
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.05

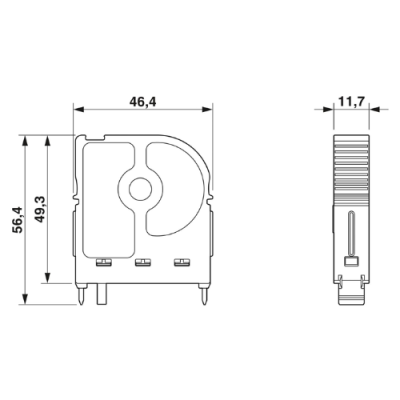

Length
56.4 mm
Height
46.4 mm
Product Attribute
Attribute Value
Material :
PBT-FR
Subcategory :
Type 2 surge protection plug
No of Positions :
1
Connection Method :
pluggable
Connector Material :
PBT-FR
Flammability Rating :
UL 94 V-0
Mounting Style :
on base element
Voltage Rating :
240 V AC
Pitch :
0.6 Div.
IP Rating :
IP20
Ambient Temp :
-40 °C ... 80 °C
Colour :
blue gray (RAL 7031)
Width :
11.7 mm
