VAL-SEC-T2-2C-350-FM
VAL-SEC-T2-2C-350-FM
VAL-SEC-T2-2C-350-FM

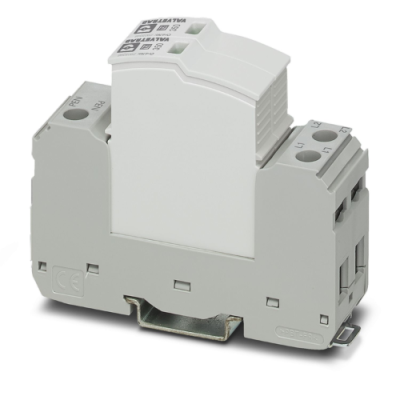

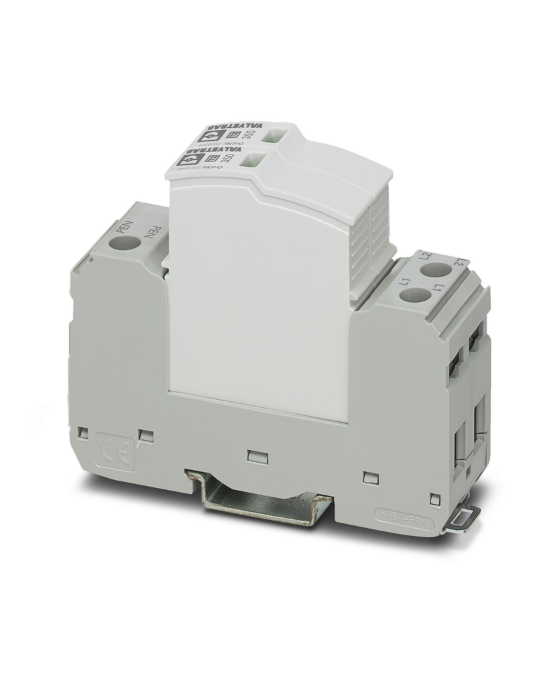

VAL-SEC-T2-2C-350-FM, TYPE 2 SURGE ARRESTER
Availability:In stock
AIC Part No
PC170091
Mfr Part No
2905337
Mfr
PHOENIX CONTACT
Short Description
VAL-SEC-T2-2C-350-FM, TYPE 2 SURGE ARRESTER
Products Categories
Surge Protection Device (SPD)
HSN Code
8536.30.00
Weight
0.23

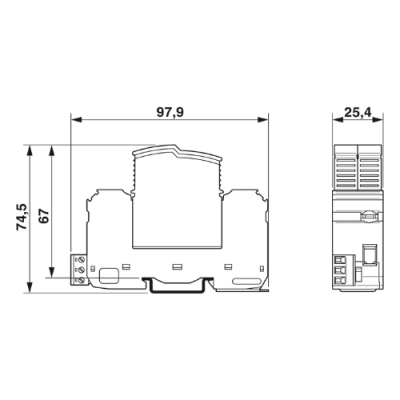

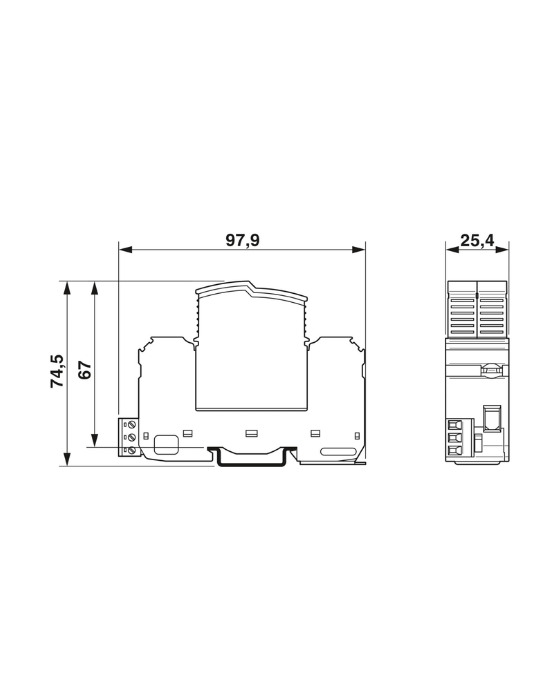

Length
74.5 mm
Height
97.9 mm
Product Attribute
Attribute Value
Material :
PA 6.6-FR 20 % GF
Subcategory :
Type 2 surge arrester
No of Positions :
2
Current Rating :
40 A: 2L-N/PE
Connection Method :
Screw connection
Connector Material :
PA6.6-FR 20% GF/ PBT-FR
Flammability Rating :
UL 94 V-0
Mounting Style :
DIN rail: 35 mm
Voltage Rating :
240/415 V AC
Pitch :
1.4 Div.
IP Rating :
IP20
Ambient Temp :
-40°C ... 80°C
Colour :
light gray (RAL 7035)
Width :
25.4 mm
